SolarEdge Home 10KWH Battery UBAT-10K1PS0B-03

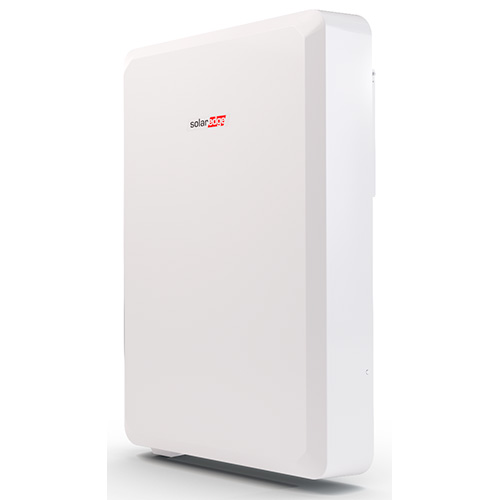

SolarEdge UBAT-10K1PS0B-03 Home Battery 10kWh – 400V DC-Coupled Residential Energy Storage

The SolarEdge UBAT-10K1PS0B-03 is a high-voltage 10kWh Home Battery (usable capacity 9.7 kWh at 100% depth of discharge) designed for seamless integration with SolarEdge Home Hub hybrid inverters. This DC-coupled lithium-ion battery delivers reliable whole-home backup power, maximizes solar self-consumption, and helps homeowners reduce electricity bills through smart energy management.

Manufactured with a focus on domestic content eligibility in the USA, the UBAT-10K1PS0B-03 is an excellent choice for residential solar + storage systems seeking high efficiency, advanced safety features, and flexible indoor/outdoor installation.

Powerful Performance & Efficiency

• Usable Energy: 9.7 kWh (100% DoD)
• Continuous Output Power: 5,000 W
• Peak Output Power: 7,500 W (for 10 seconds)
• Peak Roundtrip Efficiency: 94.5%
• Voltage Range: 350 – 450 Vdc
• Max Continuous Output Current: 14.3 A

DC coupling with SolarEdge Home Hub inverters ensures minimal conversion losses, allowing more of your solar production to be stored and used efficiently for on-grid optimization or backup power.

Advanced Safety & Reliability

The SolarEdge Home Battery incorporates multiple layers of protection:

• ThermoShield™ cell-level thermal protection
• SafeDC™ and Rapid Shutdown compliance
• Certified to the stringent UL 9540A fire safety standard (along with UL 1973, UL 9540, UL 1642, and UN 38.3)
• Natural convection cooling with quiet operation (<25 dBA at 1m)

It supports up to 3 batteries per inverter for scalable capacity (up to ~29 kWh usable).

Flexible Installation & Smart Features

• Indoor/Outdoor Rated: IP55 / NEMA 3R enclosure
• Mounting Options: Wall mount (with optional handles) or floor mount (with optional stand)
• Dimensions: 31.1″ W x 46.4″ H x 9.84″ D (790 x 1179 x 250 mm)
• Weight: 262 lb (119 kg)
• Wireless communication (plus RS485) via SolarEdge Home Network Plug-In for simplified wiring and faster commissioning
• Full integration with the SolarEdge app for real-time monitoring of solar, storage, EV charging, and backup power

Operating temperature range: -4°F to +122°F (-20°C to +50°C), with natural convection cooling and no fans required.

Warranty & Long-Term Value

Backed by a 10-year limited warranty, with performance retention guaranteed at a minimum of 70% capacity at the end of the warranty period (subject to specific terms and installation conditions). The battery is optimized for unlimited cycles within the warranty guidelines.

Ideal for Complete SolarEdge Home Ecosystems

Pair the SolarEdge UBAT-10K1PS0B-03 with the SolarEdge Home Hub Single SKU hybrid inverter (such as the USE11400H-USSKBEZ8), Power Optimizers (S440 or S500B), and compatible high-efficiency solar modules for a fully integrated, app-controlled residential energy system.

Whether you need reliable backup during outages, time-of-use optimization, or maximum solar self-consumption, this 10kWh Home Battery delivers efficient, safe, and scalable energy storage.

Available Now at Sun Supply PV

Stock up on the SolarEdge UBAT-10K1PS0B-03 10kWh Home Battery at competitive pricing.

Technical Specifications

Notes:

• Charge/discharge power may vary depending on ambient temperature.
• Floor stand, wall mount handles, and branch connectors (for multi-battery setups) are purchased separately.
• DC-coupled design for high system efficiency with SolarEdge Home Hub inverters.
