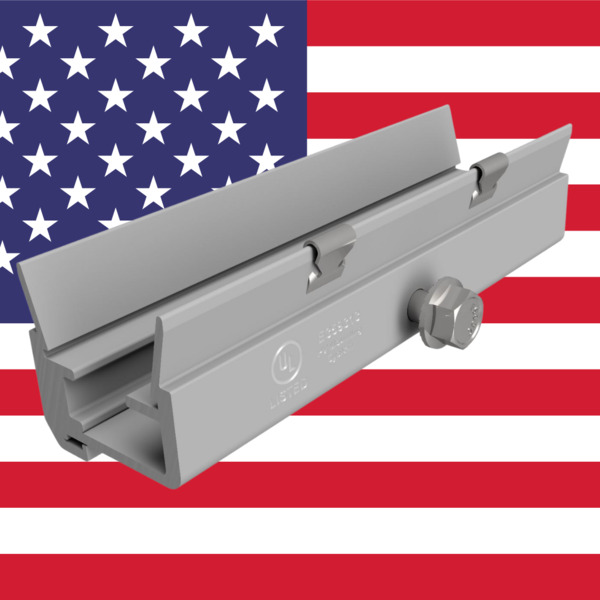

SnapNrack Ultra Rail Splice Silver, 242-01213-USA

The SnapNrack 242-01213-USA Ultra Rail Splice Silver is a high-quality, domestically produced rail connector designed specifically for the Ultra Rail system (compatible with both UR-40 and UR-45 profiles). This bonding splice enables seamless extension of rail sections while ensuring structural integrity, electrical bonding, and code-compliant performance in residential and light commercial solar installations.

Key Features

• Compatibility: Works with UR-40 and UR-45 Ultra Rail profiles, allowing installers to join standard-length rails (such as 168″ or 172″ sections) to create longer continuous runs tailored to module layouts and roof spans.
• Finish: Silver (mill/natural aluminum) anodized or clear finish for excellent corrosion resistance, durability in outdoor environments, and a clean, professional appearance that matches mill-finish rails.
• Material: Constructed from high-strength 6000 series aluminum with stainless steel hardware (including through and tapped pieces for secure fastening), delivering superior strength, bonding, and longevity.
• Weight: Extremely lightweight at only 0.52 lbs per splice, minimizing added system weight and easing handling during installation.
• Dimensions: Compact design approximately 6″ x 1.68″ x 1.64″ (or similar; precise per engineering docs), with an integrated bonding mechanism to maintain electrical continuity across spliced rails without additional jumpers in many configurations.
• USA Domestic Content: The “-USA” designation confirms enhanced U.S. manufacturing and sourcing (produced to meet or exceed domestic content thresholds), qualifying for FEOC compliance and potential ITC Domestic Content Bonus Credit incentives under the Inflation Reduction Act—ideal for projects prioritizing American-made components and supply chain reliability.

Benefits and System Integration

As a core accessory in SnapNrack’s Ultra Rail Roof Mount System, the 242-01213-USA splice provides:

• Secure rail extension with enhanced structural strength, supporting the system’s renowned large span capabilities and adaptability to various roof types.
• Built-in bonding for reliable electrical grounding and code compliance (UL-listed system components).
• Tool-efficient installation — designed for quick alignment and fastening, aligning with SnapNrack’s “snap-in” philosophy to reduce labor time.
• Seamless integration with other Ultra Rail components (rails, mid/end clamps, roof attachments) for a complete, low-profile, wire-managed mounting solution.

It maintains the lightweight, cost-effective advantages of the Ultra Rail lineup while ensuring spliced sections perform as a unified, high-strength rail.

Ideal Applications

Perfect for residential rooftop solar arrays requiring extended rail runs (e.g., across longer module rows or irregular roof geometries) in moderate-load regions. It’s especially valuable for installers seeking domestic content incentives, ease of use, and reliable performance without over-engineering.

For full specifications, load tables, installation instructions (including splice torque values and bonding details), and compatibility confirmation, refer to SnapNrack’s official resources at snapnrack.com (product page for 242-01213-USA, Ultra Rail installation guides, and Domestic Content brochure). This splice upholds SnapNrack’s commitment to “Solar Mounting Made Easy” with engineer-approved, installer-friendly design and strong U.S. manufacturing support.
