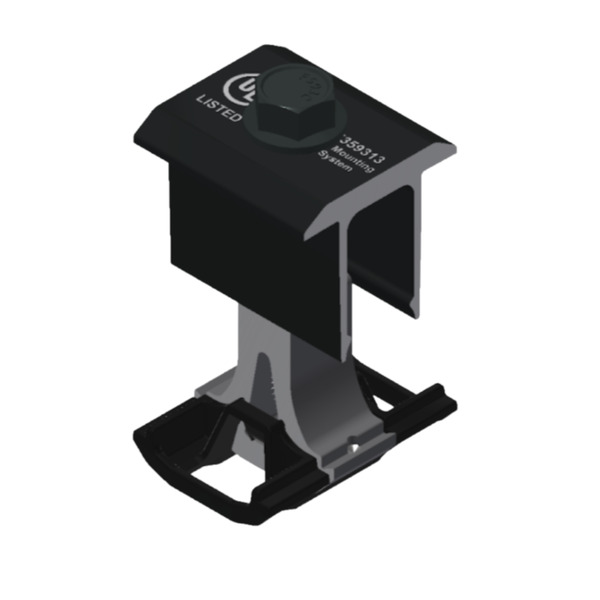

SnapNrack Ultra Rail Mid Clamp Black, 242-02071-USA

The SnapNrack 242-02071-USA Ultra Rail Mid Clamp Black is a domestically manufactured, universal module clamp engineered for the Ultra Rail system, providing secure, top-down module attachment with excellent bonding, aesthetics, and compliance features for residential and light commercial solar installations.

Key Features

• Compatibility: Universal design secures solar modules with frame thicknesses from 30 mm to 46 mm (or similar standard ranges per SnapNrack specs), compatible with UR-40 and UR-45 Ultra Rail profiles for seamless integration across the system.
• Finish: Black anodized or coated finish offers superior corrosion resistance, UV stability, and a sleek, low-profile appearance that matches black-framed modules and dark roof aesthetics for a clean, professional look.
• Material: High-strength 6000 series aluminum body with stainless steel hardware, delivering robust durability, strength, and reliable long-term performance in outdoor environments.
• Weight: Ultra-lightweight at only 0.15 lbs per clamp, minimizing added system weight and simplifying handling and installation.
• Dimensions: Compact footprint (approximately 1.57″ L x 1.41″ W x 2.73″ H), with a design load rating of 855 lbs (ultimate load around 2,823 lbs per engineering data) to support high-wind, snow, and seismic requirements.
• Installation: Signature snap-in functionality for rapid, one-tool attachment (using a 1/2″ or 13 mm socket); torque specs typically 8-10 ft-lbs for black hardware, enabling fast module placement and electrical bonding without separate grounding jumpers in compliant setups.
• USA Domestic Content: The “-USA” designation confirms enhanced U.S. sourcing and manufacturing, meeting FEOC compliance and qualifying for the ITC Domestic Content Bonus Credit (up to 10% additional incentive under the Inflation Reduction Act), ideal for projects emphasizing American-made components and supply chain resilience.

Benefits and System Integration

As a core component of SnapNrack’s Ultra Rail Roof Mount System, this black mid clamp delivers:

• Secure module retention and integrated bonding for code-compliant electrical continuity across the array.
• Installer-friendly speed — snap-in design reduces labor time while maintaining structural integrity and large-span capabilities.
• Enhanced aesthetics — black finish minimizes visibility under the array, creating a more discreet, modern solar installation.
• Full coordination — Pairs perfectly with other black Ultra Rail components (rails, end clamps, splices, L-feet, and flashings) for a unified system with concealed wire management and low-profile appeal.

It supports reliable, high-performance mounting that meets or exceeds building codes in moderate to high-load regions.

Ideal Applications

Best suited for residential rooftop solar arrays where installers prioritize quick installation, superior aesthetics with black modules, domestic manufacturing incentives, and reliable bonding/structural performance on various roof types.

For complete specifications, load tables, torque values, installation instructions, module compatibility charts, and domestic content documentation, refer to SnapNrack’s official resources at snapnrack.com (product page for 242-02071-USA, Ultra Rail Mid Clamp datasheet, and Domestic Content section). This mid clamp embodies SnapNrack’s “Solar Mounting Made Easy” philosophy—combining proven engineering, rapid deployment, premium black aesthetics, and strong U.S. production support.
