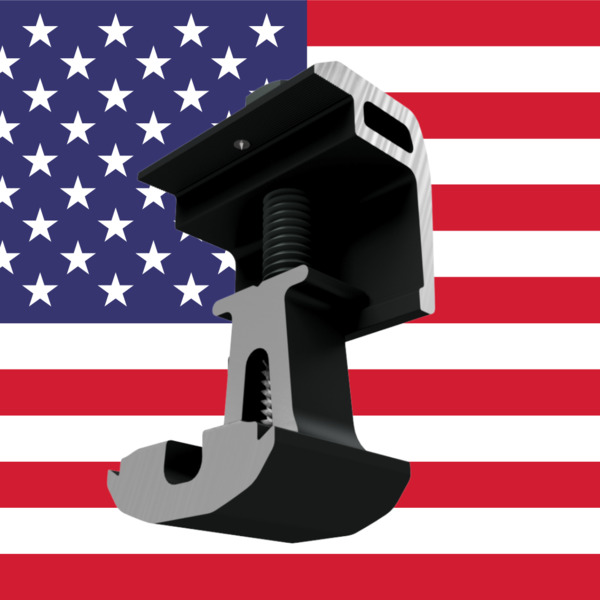

SnapNrack Ultra Rail End Clamp Black, 242-02073-USA

The SnapNrack 242-02073-USA Ultra Rail End Clamp Black is a domestically manufactured, universal end clamp tailored for the Ultra Rail system, securing the outer edges of solar modules with reliable bonding, structural strength, and a premium black aesthetic for residential and light commercial rooftop installations.

Key Features

• Compatibility: Universal design accommodates solar modules with frame thicknesses from 30 mm to 46 mm (standard range per SnapNrack specifications), fully compatible with UR-40 and UR-45 Ultra Rail profiles for consistent performance across the system.
• Finish: Black anodized or coated finish delivers outstanding corrosion resistance, UV durability, and a sleek, low-visibility appearance that complements black-framed modules and modern roof aesthetics for a polished, discreet solar array.
• Material: Constructed from high-strength 6000 series aluminum with stainless steel hardware, ensuring exceptional durability, load-bearing capacity, and long-term reliability in exposed conditions.
• Weight: Extremely lightweight at only 0.16 lbs per clamp, reducing overall system weight and making it easy to handle and install.
• Dimensions: Compact profile (approximately 1.57″ L x 1.03″ W x 2.73″ H or similar per engineering data), with a design that supports high structural loads while maintaining a low-profile look.
• Installation: Features SnapNrack’s signature snap-in mechanism for fast, tool-efficient attachment (typically using a 1/2″ or 13 mm socket); torque values align with system standards (e.g., 8-10 ft-lbs for black hardware), enabling quick module edge securing and integrated electrical bonding without additional components in many code-compliant setups.
• USA Domestic Content: The “-USA” designation indicates enhanced U.S. sourcing and manufacturing, meeting FEOC (Foreign Entity of Concern) compliance and qualifying for the ITC Domestic Content Bonus Credit (up to 10% additional incentive under the Inflation Reduction Act), perfect for projects focused on American-made materials and supply chain security.

Benefits and System Integration

As an essential part of SnapNrack’s Ultra Rail Roof Mount System, this black end clamp provides:

• Secure edge retention and built-in bonding for electrical continuity and code compliance across the array.
• Rapid deployment — snap-in design minimizes labor while preserving the system’s large-span capabilities and adaptability to various roof types.
• Superior aesthetics — black finish reduces visual contrast under the modules, delivering a cleaner, more professional installation.
• Seamless coordination — Integrates flawlessly with other black Ultra Rail components (rails, mid clamps, splices, L-feet, and flashings) for a fully matched system with concealed wire management and enhanced curb appeal.

It ensures reliable, high-performance module fastening that meets or exceeds building codes for wind, snow, and seismic demands in moderate to high-load areas.

Ideal Applications

Ideal for residential rooftop solar arrays featuring black-framed modules, where installers value fast installation, premium black aesthetics, domestic content incentives, and dependable edge clamping on diverse roof types.

For complete specifications, load ratings, torque details, module compatibility lists, installation guides, and domestic content verification, refer to SnapNrack’s official resources at snapnrack.com (product page for 242-02073-USA, Ultra Rail End Clamp technical datasheet, and Domestic Content section). This end clamp reflects SnapNrack’s “Solar Mounting Made Easy” commitment—blending robust engineering, installer efficiency, elegant black design, and strong U.S. manufacturing support.
