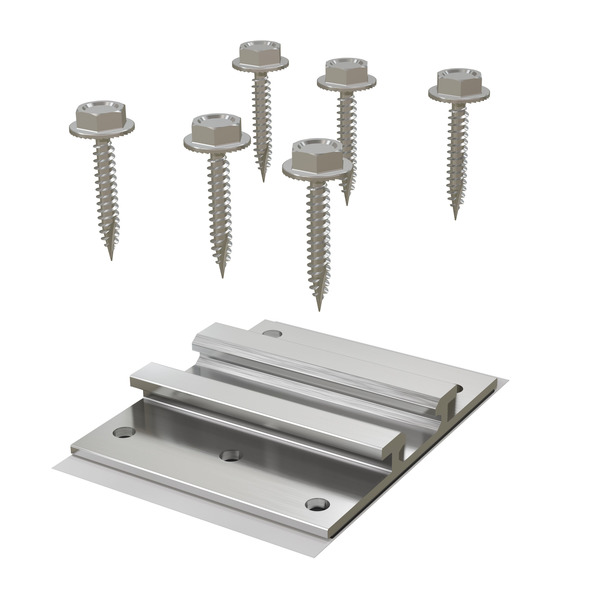

Pegasus Solar PTX-DSB-SW-US

The Pegasus Solar PTX-DSB-SW-US is a USA-made Tile Scissor Mount Deck Attach Kit specifically designed for S & W-shaped tile roofs. This deck attachment sled provides a secure, low-profile connection point for the Pegasus Rail System while delivering excellent waterproofing and domestic content eligibility under the Inflation Reduction Act.

Part of Pegasus Solar’s innovative Tile Scissor Mount platform, the PTX-DSB-SW-US simplifies tile roof installations by allowing direct attachment to the roof deck without unnecessary tile cutting or complex flashing searches. It pairs seamlessly with the revolutionary squeeze-lock Scissor Mount system for faster, more reliable residential and light commercial solar projects.

Key Features

• Deck Attach Sled Design: Provides a strong structural connection directly to the roof decking for maximum hold-down strength on S & W tile roofs.
• Includes Butyl Sealant: Pre-applied or included butyl for superior initial sealing and long-term weather resistance.
• Domestic Content Ready: Manufactured in the USA (PTX-DSB-SW-US) to help projects qualify for the full domestic content adder tax credit.
• Compatibility: Optimized for use with Pegasus Tile Scissor Mount flashing kits for S & W tiles. Works with the full Pegasus Rail ecosystem, including tool-free bonded splices, multi-clamps, and SkipRail configurations.
• Watertight Performance: Integrates with Pegasus Scissor Mount’s elevated double-seal EPDM boot, single-form flashing, wind-blocking lip, and offset drainage cone — engineered to stay watertight for the life of the system.
• Quick Installation: Combines with the squeeze-lock mechanism for one-step rail attachment — no L-foot required, reducing labor time significantly.
• Durable Construction: High-strength aluminum sled with corrosion-resistant finish.

Benefits for Installers & Customers

• Faster Tile Roof Installs: Eliminates time-consuming tile cutting or replacement hunting while maintaining roof integrity.
• Superior Waterproofing: Multiple sealing layers and smart drainage design minimize leak risks even in heavy rain or wind-driven conditions.
• Simplified Inventory: One kit designed specifically for S & W tiles (separate SKUs available for flat tiles).
• Code Compliant & Reliable: Pairs with UL 2703-listed Pegasus Rail System for bonding/grounding and PE-certified structural performance under ASCE 7 wind and snow loads.
• 25-Year Warranty: Backed by Pegasus Solar’s industry-leading warranty for long-term peace of mind.
• Aesthetic & Low-Profile: Keeps the array clean and flush against the tile roof.

Typical Specifications (PTX-DSB-SW-US)

• Product Type: Tile Scissor Mount Deck Attach Sled Kit (for S & W Tiles)
• Material: Aluminum
• Color/Finish: Silver (mill)
• Includes: Butyl sealant
• Application: S & W-shaped concrete or clay tile roofs
• Mounting: Direct deck attachment
• Warranty: 25 Years
• Availability: Often available upon request through distributors

The Pegasus Solar PTX-DSB-SW-US is an excellent choice for installers working on S & W tile roofs who want a modern, high-performance, and incentive-friendly mounting solution that saves time and protects the building envelope.

For detailed installation instructions, load tables, cut sheets, or CAD files, refer to the official Pegasus Scissor Mount resources or contact your distributor.
