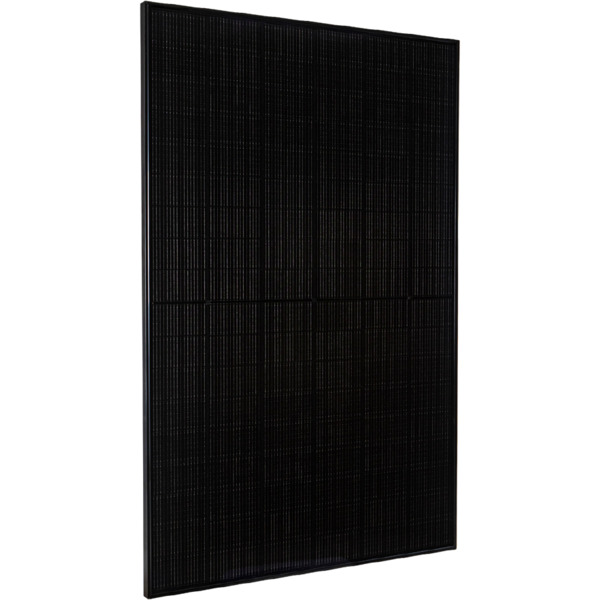

Mission Solar 435W MSX10-350HNOB Domestic Content

The Mission Solar MSX10-435HN0B 435W Black on White 108 Half-Cell Mono Solar Panel is a high-efficiency, monofacial module featuring advanced N-type TOPCon (Tunnel Oxide Passivated Contact) technology in a compact 108 half-cut cell design. Assembled in the USA (San Antonio, Texas), this “Black on White” (BOW) configuration—with a sleek black anodized frame and white backsheet—offers excellent performance, durability, and eligibility for domestic content incentives under U.S. tax credits (e.g., qualifying for the Domestic Content Bonus Credit when installed in accordance with IRS guidelines).

Key Features

• N-Type TOPCon Technology: Delivers superior efficiency, lower degradation rates, better low-light performance, and reduced LID/LETID compared to traditional P-type cells.
• Power Output and Efficiency: 435W nominal power with 22.3% module efficiency (positive tolerance 0 to +3%), maximizing energy yield in space-limited residential or light commercial rooftops.
• Domestic Content: Proudly American-made with qualifying domestic components, supporting U.S. manufacturing jobs and bonus tax credit opportunities for eligible projects.

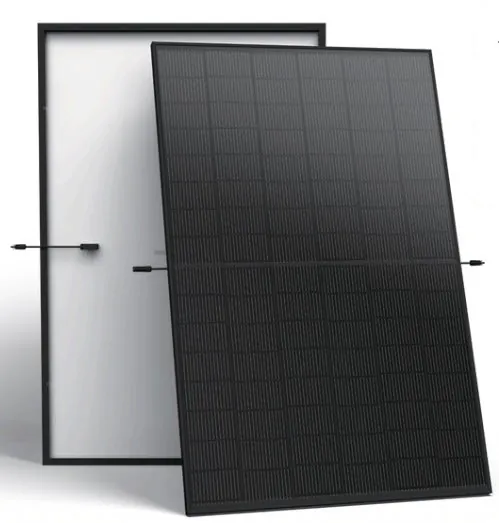

• Aesthetic Build: 35mm black anodized aluminum frame paired with white backsheet for a professional, contrast-enhanced look on rooftops; compact form factor optimizes array layout.
• Complete Electrical Specs (under STC):
  • Open Circuit Voltage (Voc): 39.56 V
  • Short Circuit Current (Isc): 13.79 A
  • Maximum Power Voltage (Vmp): 33.31 V
  • Maximum Power Current (Imp): 13.07 A
  • Maximum System Voltage: 1500 VDC
  • Maximum Series Fuse Rating: 30 A
• Mechanical Specs:
  • Dimensions: 1722 mm x 1134 mm x 35 mm (67.8″ x 44.65″ x 1.38″)
  • Weight: 46.96 lbs (21.3 kg)
  • Connectors: MC4 EVO2 / Staubli EVO-2A compatible
  • Cable: ~1.2 m (47.2″) PV wire
• Durability and Environmental Resistance: Certified for extreme conditions including salt spray, ammonia, sand, humidity, and high heat; withstands front/back loads up to 5400 Pa (UL standard); low temperature coefficient of Pmax (-0.29%/°C) for strong hot-weather performance; operating range -40°F to 185°F (-40°C to +85°C); Type 1 fire rating.
• Certifications and Compliance: IEC 61215, IEC 61730, UL 61730, and additional standards for reliability and code compliance.

Benefits

Optimized for real-world energy production, the MSX10-435HN0B excels in partial shade, high temperatures, and variable irradiance thanks to its N-type cells, multi-busbar design, and specialized glass. Its compact size and high power density make it ideal for maximizing output on modern rooftops. Mission Solar provides a best-in-class 25-year workmanship warranty and 30-year linear performance warranty (≤1% degradation in year 1, then 0.45% annually, guaranteeing ≥86% output at year 30). As a domestically produced module, it streamlines supply chains, reduces lead times, and simplifies incentive qualification and warranty support.

This positions the Mission Solar MSX10-435HN0B as a top-tier choice for installers and homeowners seeking reliable, high-performance, incentive-eligible solar panels that deliver long-term value and energy independence. For full datasheets, load tables, installation manuals, or warranty details, refer to Mission Solar’s official resources at missionsolar.com.
