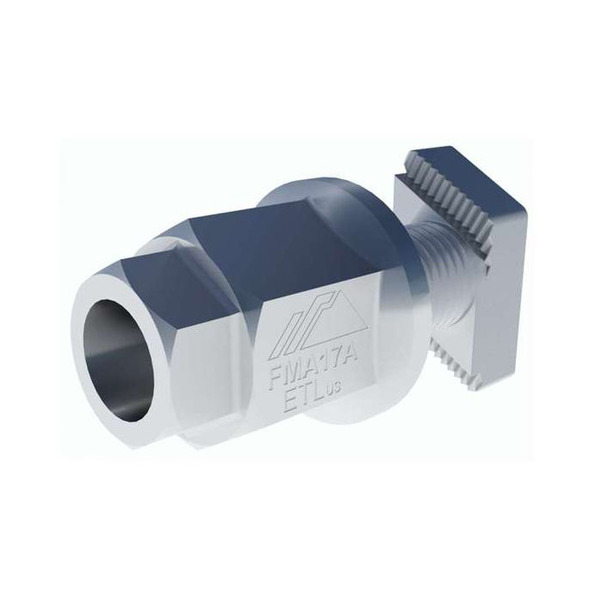

IronRidge BHW-TB-03-A1 T-Bolt Bonding Hardware

IronRidge BHW-TB-03-A1 T-Bolt Bonding Hardware – Reliable Rail Bonding for Solar Racking
The IronRidge BHW-TB-03-A1 T-Bolt Bonding Hardware is a high-quality attachment solution designed specifically for IronRidge XR Rail solar mounting systems. This T-bolt bonding hardware securely attaches and electrically bonds solar rails to roof attachments, ensuring both structural integrity and code-compliant grounding in residential and commercial PV installations.
Engineered for speed and simplicity, the BHW-TB-03-A1 is a top choice for solar installers looking to streamline racking assembly while maintaining UL 2703 compliance for bonding and grounding.

Key Features and Benefits

T-Bolt Design — Provides a strong mechanical connection and reliable electrical bonding between the XR Rail and attachments. The T-bolt style is preferred by many installers for its ease of insertion into the rail slot.
Step Nut with 7/16″ Hex Socket — Allows you to use the same socket size as the rest of your IronRidge hardware, reducing tool changes and speeding up installation.
Premium 300 Series Stainless Steel Construction — Offers excellent corrosion resistance and long-term durability, even in harsh coastal or high-moisture environments.
Integrated Bonding Teeth — Ensures low-resistance electrical continuity without the need for additional grounding washers or lugs in most configurations.
One-Piece Design — Simplifies handling and reduces the risk of dropped or lost parts on the roof.

Compatible Applications
The IronRidge T-Bolt Bonding Hardware (BHW-TB-03-A1) is compatible with:

IronRidge FlashFoot2
Slotted L-Foot
Halo UltraGrip (HUG)
FlashVue
Certified third-party roof attachments
IronRidge XR Rail series (including XR100, XR1000, etc.)

It works seamlessly with both pitched roof and flush mount solar racking systems.

Why Choose IronRidge Bonding Hardware?
IronRidge is trusted by solar professionals nationwide for its innovative, high-performance racking components. The BHW-TB-03-A1 T-Bolt Bonding Hardware helps you meet strict electrical bonding requirements quickly and reliably, while minimizing labor time and potential errors during installation.
Whether you’re installing a small residential array or a large commercial project, this bonding hardware delivers consistent performance and peace of mind.

Available Now at Sun Supply PV
Stock up on the IronRidge BHW-TB-03-A1 T-Bolt Bonding Hardware at competitive pricing. Sold individually, these components are essential for every IronRidge solar racking job.
