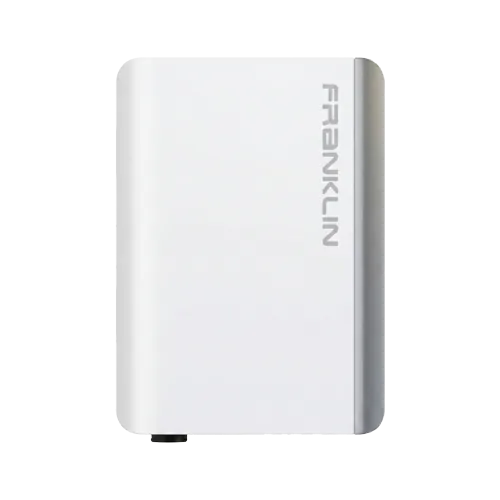

FranklinWH MAC-R1V1-US Meter Adapter Controller

FranklinWH MAC-R1V1-US Meter Adapter Controller (MAC 1) – Simplified Home Battery Installation

The FranklinWH MAC-R1V1-US Meter Adapter Controller, also called the FranklinWH MAC 1, is a compact and intelligent meter socket adapter controller designed to make installing FranklinWH home battery storage systems dramatically easier and more affordable — especially in homes with meter-main combo panels.

By mounting directly between the utility meter and a third-party meter socket adapter (MSA), the MAC eliminates the need for invasive main electrical panel upgrades, extensive rewiring, or adding sub-panels. This innovative solution can reduce typical installation time from several hours to as little as 20 minutes, significantly lowering labor costs and project complexity for solar + storage retrofits.

Key Features & Benefits

• Ultra-Fast & Non-Invasive Installation — Avoids panel modifications and utility red tape common with traditional battery backups.
• Whole-Home Energy Management — Serves as the central gateway for seamless grid interaction, automatic whole-home backup during outages, real-time metering, and intelligent control of solar, battery, and loads.
• Seamless Compatibility — Works perfectly with FranklinWH aPower 2, aPower S, and aHub systems.
• Low Power & Reliable Design — Fanless operation with only 7W consumption, Type 3R enclosure for indoor/outdoor use, and a robust 15-year warranty.
• Advanced Monitoring — Supports split CT for accurate AC-coupled solar generation measurement (CT sold separately – SKU: ACCY-CT200V2-US).

Technical Specifications

• Model: MAC-R1V1-US
• Rated AC Voltage: 208/240 Vac (operating range 183–264 Vac)
• Power Consumption: 7 W
• Communications: CAN, RS485, Ethernet, WiFi, 4G, Bluetooth
• Enclosure Rating: Type 3R (indoor/outdoor)
• Dimensions: 8.4 in (W) × 11.7 in (H) × 3.3 in (D)
• Weight: 3.3 lbs (1.5 kg)
• Mounting: Wall mount with ¾” conduit compatibility
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Certifications: UL 1741, UL 1741 PCS, IEEE 1547, CSA C22.2, FCC Part 15 Class B

Who It’s For

The FranklinWH MAC-R1V1-US is ideal for homeowners and installers dealing with challenging combo panels, retrofit solar + storage projects, or any situation where minimizing disruption and installation costs is critical. It delivers full FranklinWH smart energy features — including predictive load management, voltage/frequency regulation, and flicker-free backup — without the usual headaches of electrical upgrades.

Make your FranklinWH battery installation faster, cleaner, and more cost-effective with the MAC-R1V1-US Meter Adapter Controller.
