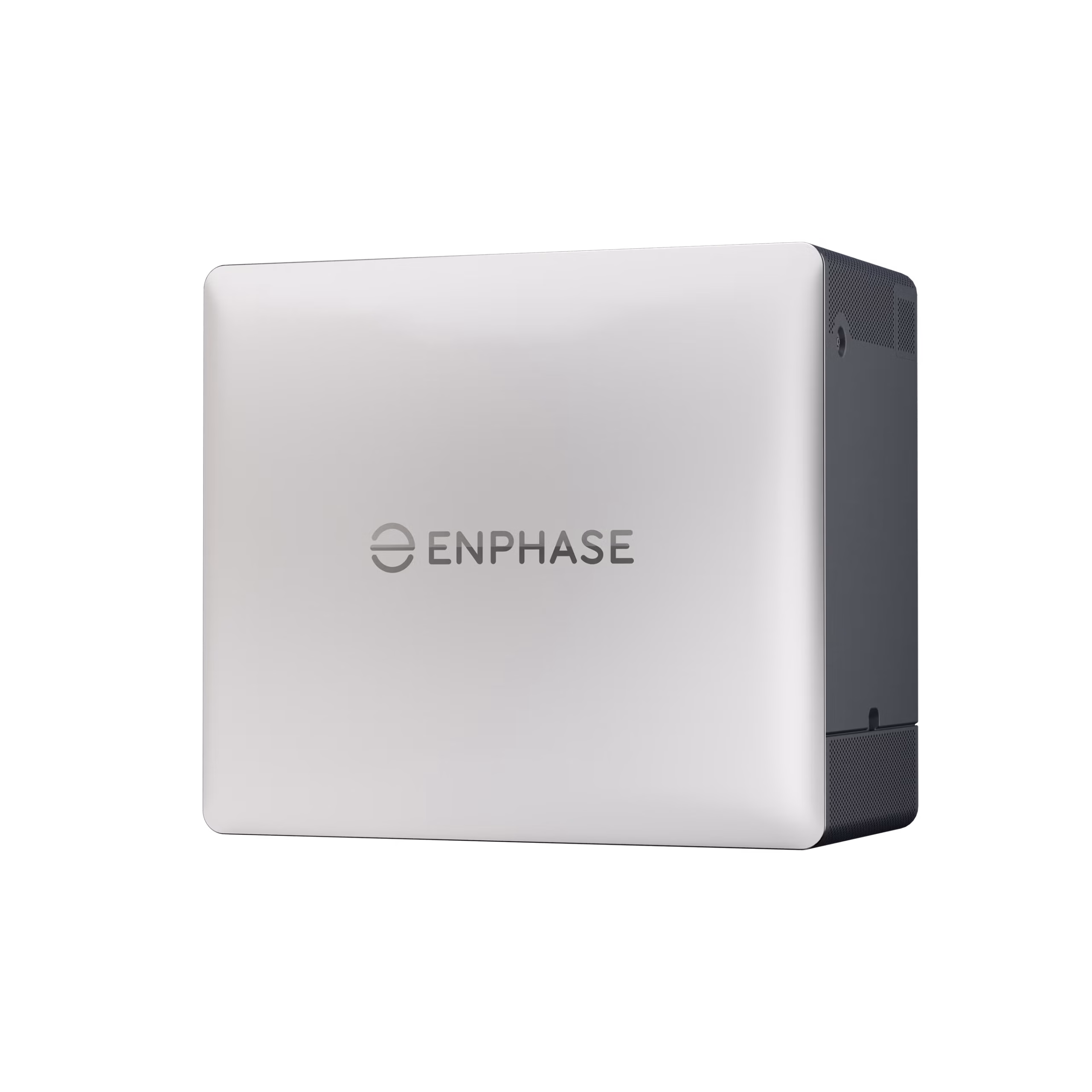

Enphase IQBATTERY-10C-1P-NA 10kWh Battery

Enphase IQBATTERY-10C-1P-NA 10kWh IQ Battery

Sun Supply PV is an Enphase Authorized Distributor.

Must be installed by Enphase Certified Person

The Enphase IQBATTERY-10C-1P-NA (commonly known as the Enphase IQ Battery 10C) is a cutting-edge, all-in-one AC-coupled home energy storage solution from Enphase’s 4th-generation lineup. Designed for seamless integration with Enphase solar systems, it delivers reliable backup power, energy optimization, and whole-home support in a compact, high-performance package.

Key Features

• All-in-One AC-Coupled Design — Integrates four embedded grid-forming microinverters (supporting both 240 V and 120 V loads), eliminating the need for additional neutral-forming hardware and simplifying installation.
• High Power Output — Provides 7.08 kW (7.08 kVA) of continuous power at 240 V, with peak capabilities of up to 14.16 kVA (3 seconds) and 11.33 kVA (10 seconds), making it capable of handling demanding loads like HVAC systems, pool pumps, and other major appliances during outages or peak times.
• Cobalt-Free Chemistry — Built with safe, long-lasting lithium iron phosphate (LFP) cells, offering superior thermal stability, reduced fire risk, and extended lifespan compared to traditional lithium-ion batteries.
• Compact and Scalable — Features a high energy density (approximately 34% greater than previous models), requiring less wall space. Modular architecture allows stacking up to 80 kWh total capacity for growing energy needs.
• Reliable Backup — Grid-forming capability ensures seamless transition to backup mode, with distributed microinverters maintaining power flow even if one experiences an issue.
• Smart Monitoring — Full integration with the Enphase App for remote monitoring, intelligent energy profiles, and optimization of self-consumption, time-of-use savings, and backup performance.
• Safety and Durability — UL 9540A certified, NEMA 3R rated for indoor/outdoor use, with flexible mounting options (wall bracket included; floor pedestal available).

Technical Specifications

• Usable Energy Capacity — 10.0 kWh
• Continuous Power Output — 7.08 kW / 7.08 kVA (240 V)
• Peak Power Output — 14.16 kVA (3 seconds), 11.33 kVA (10 seconds)
• Efficiency — DC round-trip ~96%, AC round-trip ~90% (at 50% power)
• Dimensions — Approximately 24.5 in x 27.8–28 in x 14.4 in (H x W x D)
• Weight — 317 lbs (144 kg)
• Warranty — 15-year limited warranty or 6,000 cycles (to 60% capacity retention)

The Enphase IQ Battery 10C stands out as a powerful, installer-friendly option for homeowners seeking robust whole-home backup, maximized solar self-consumption, and future-proof scalability. Its redesigned architecture prioritizes simplicity, safety, and performance, making it an ideal choice for modern energy-independent living. For the most current details or installation guidance, consult the official Enphase resources or a certified installer.
