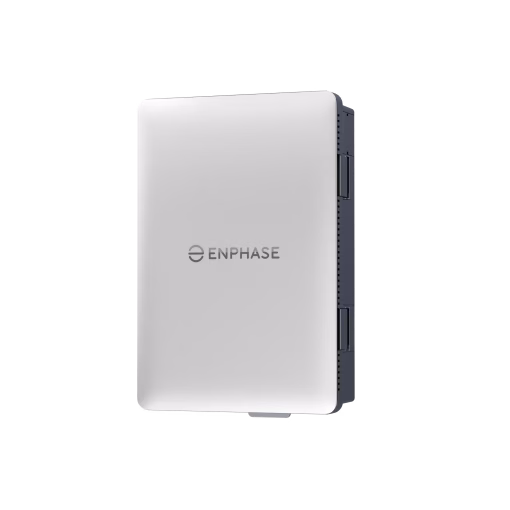

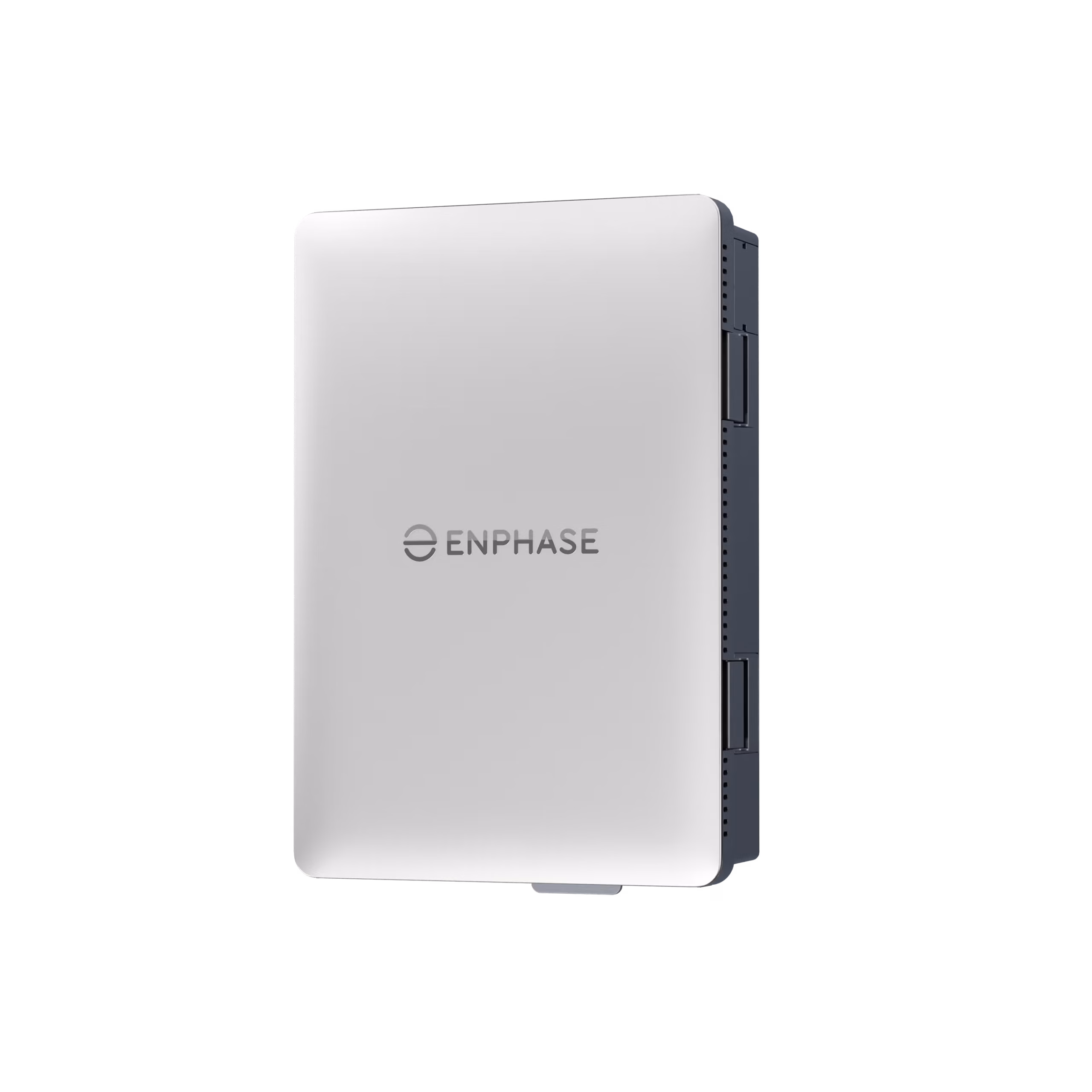

Enphase IQ Combiner 6C X-IQ-AM1-240-6C

Enphase IQ Combiner 6C X-IQ-AM1-240-6C w/Envoy Gateway & Cell Modem

The Enphase IQ Combiner 6C (X-IQ-AM1-240-6C) represents a significant advancement in simplifying the installation and functionality of residential energy systems. This all-in-one solution consolidates essential interconnection equipment into a single, efficient enclosure, thereby easing the integration of IQ Series Microinverters and IQ Batteries into photovoltaic (PV) systems.

Key Features

• Streamlined Installation: The IQ Combiner 6C comes pre-wired and pre-installed, allowing for quicker, hassle-free installation. It is specifically designed for compatibility with the IQ Battery 10C and the IQ Meter Collar, providing a consistent solution for various energy needs.
• Comprehensive Monitoring: Integrated within the Combiner is a load controller along with breaker spaces designed for PV systems, battery storage, and even electric vehicle (EV) chargers. This allows users to monitor energy production, storage, and consumption seamlessly, all from a single unit.
• Certification and Durability: Built to last, the IQ Combiner 6C is enclosed in a durable NEMA type 3R housing, ensuring protection against the elements. It has been UL-certified for safety and performance, adhering to rigorous industry standards.
• Advanced Networking Capabilities: The unit includes integrated Enphase Mobile Connect (CELLMODEM-07-NA) for connectivity, supporting multiple networking options such as Wi-Fi, Ethernet, and Cellular. This versatility in communication enables easy remote access and monitoring.
• Flexible Expandability: With space for multiple branch-circuit breakers—up to five PV breakers, two battery breakers, and one EV charger breaker—the IQ Combiner 6C allows for future expansions. Its built-in load controller facilitates monitoring and managing heavy loads, enhancing operational efficiency.

Technical Specifications

• Electrical Ratings:
  • System Voltage: 120/240 VAC, 60 Hz
  • Internal DER Busbar Rating: 200 A
  • Internal PV Busbar Rating: 100 A
• Current Ratings:
  • Maximum Continuous DERs Current Rating: 160 A
  • Maximum Continuous PVs Current Rating: 80 A
  • Overcurrent Protection Ratings: Various based on configurations (e.g., Maximum backfeed protection of 125 A)
• Physical Dimensions:
  • Depth: 8.66 in
  • Width: 18.11 in
  • Height: 26.77 in
  • Weight: 18 kg (39.68 lbs)

• Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
• 80 A total PV branch circuits

Warranty and Support

The Enphase IQ Combiner 6C comes with a robust 15-year limited warranty, demonstrating the company’s commitment to quality and reliability. Additionally, for the integrated cellular modem, users receive a 5-year warranty with the option to extend the data plan for another 5 years, ensuring continued connectivity and support.

The Enphase IQ Combiner 6C X-IQ-AM1-240-6C is a versatile and essential component for modern residential energy systems, providing an all-in-one solution that simplifies installation, enhances monitoring capabilities, and ensures durability and compliance with safety standards. By incorporating this device into an energy system, homeowners can achieve efficient energy production, storage, and management, making it a critical asset in transitioning to sustainable energy solutions.
