APsmart RSD-S-PLC Rapid Shutdown Device

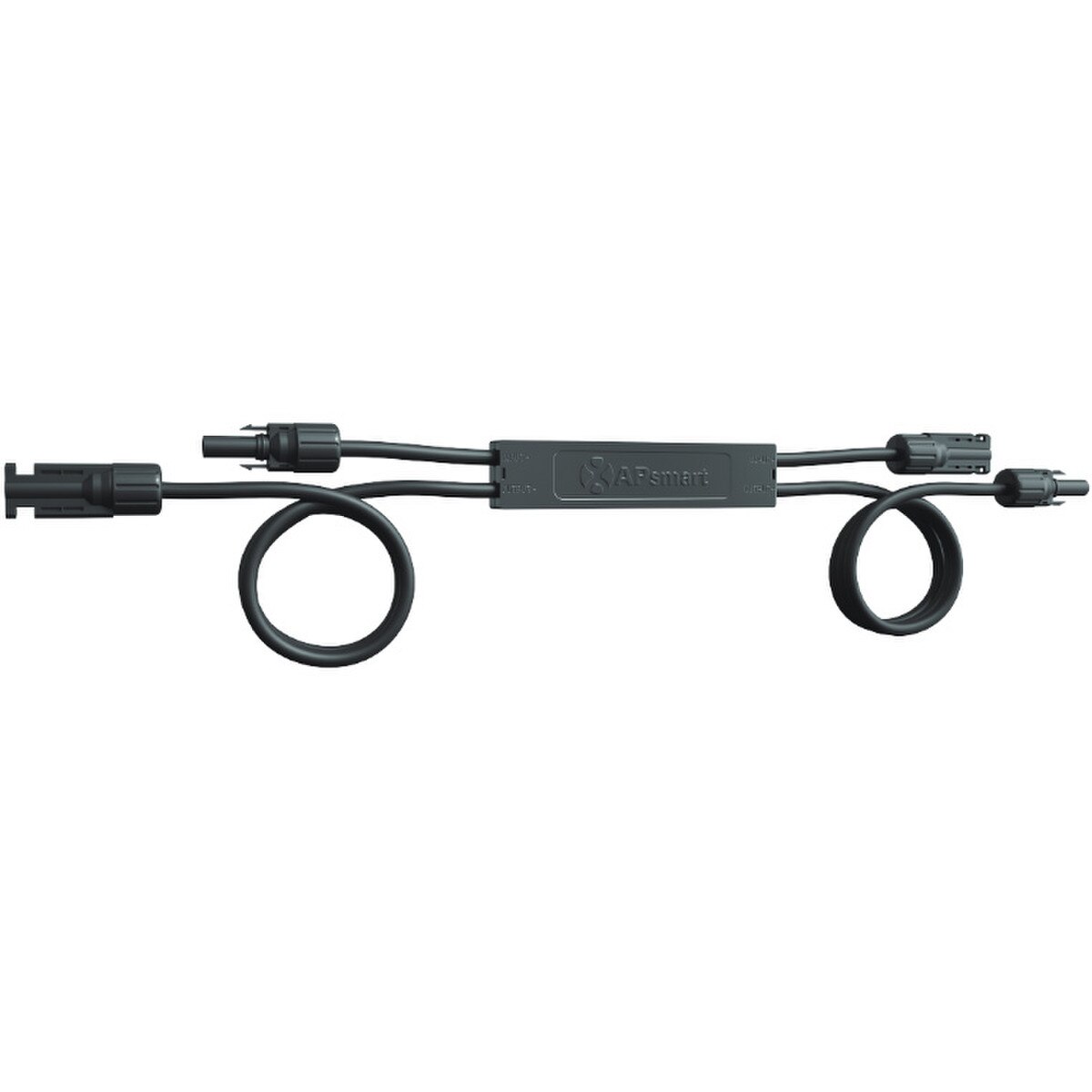

APsmart RSD-S-PLC 1000V Receiver (415002) – Rapid Shutdown Device for Solar PV Systems

The APsmart RSD-S-PLC 1000V Receiver (model 415002) is a compact, reliable module-level rapid shutdown device (RSD) designed for residential and commercial solar PV installations. It ensures compliance with NEC 2017, 2020, and 2023 (690.12) requirements by safely reducing voltage on PV source circuits to safe levels within seconds during an emergency shutdown.

This single-input PLC-enabled rapid shutdown receiver communicates via Power Line Communication (PLC) with the APsmart Transmitter-PLC. It continuously monitors a “heartbeat” signal from the transmitter and automatically initiates rapid shutdown when the signal is absent — providing module-level safety without relying on additional wiring or complex setups.

Key Features & Benefits

• NEC 690.12 Rapid Shutdown Compliance — Meets the latest NEC 2017/2020/2023 standards for module-level rapid shutdown, reducing PV system voltage to under 30V within 30 seconds.
• SunSpec Certified PLC Communication — Maintains reliable “heartbeat” signaling with the APsmart Transmitter for dependable operation and simplified system integration.
• Easy Installation — Plug-and-play design with pre-attached MC4 connectors (Stäubli MC4 compatible), short input cable (250 mm), and longer output cable (1200 mm) for flexible module connections.
• Rugged & Weatherproof — IP68 / NEMA Type 6P enclosure rating with over-temperature protection, built for harsh outdoor conditions from -40°F to +185°F (-40°C to +85°C).
• High Compatibility — Works with many string inverters, including SMA-approved systems, and supports up to 1000V system voltage (also available in 1500V variants).
• Manual & Automatic Shutdown — Users can trigger shutdown manually via the Transmitter breaker switch for added safety and peace of mind.

Technical Specifications

• Model: RSD-S-PLC 415002
• Input Operating Voltage Range: 8–80 V DC
• Maximum Continuous Input Current (Imax): 15 A
• Maximum Short Circuit Current (Isc): 25 A
• Maximum Series Fuse Rating: 30 A
• Maximum System Voltage: 1000 V (UL/TUV)
• Output Operating Voltage Range: 8–80 V DC
• Communication: PLC (Power Line Communication)
• Connectors: Input – Stäubli MC4 PV-KBT4 & KST4 (or customized); Output – APsystems specified or customized
• Cable Length: Input 250 mm (~9.8″), Output 1200 mm (~47″)
• Dimensions (without cables): 5.5″ × 1.3″ × 0.7″ (140 × 32 × 18 mm)
• Enclosure Rating: IP68 / NEMA Type 6P
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Certifications: UL 1741, CSA C22.2 No. 330-17, IEC/EN 62109-1, SunSpec, FCC Part 15, NEC 690.12 compliant

Who It’s For

The APsmart RSD-S-PLC 1000V Receiver (415002) is ideal for solar installers and homeowners needing a cost-effective, SunSpec-certified rapid shutdown solution for new PV systems or retrofits. It pairs seamlessly with the APsmart Transmitter-PLC to deliver module-level safety while minimizing installation time and complexity.

Ensure fast, reliable NEC-compliant rapid shutdown for your solar array with the APsmart RSD-S-PLC 1000V Receiver.
